Channel Encryption Debugging

This debug session uses two different nodes; these are the names used during all the session:

node1, name: ubuntu1004.brenta.org, operating system: Ubuntu Linux 10.04 (64 bit)
node2, name: ubuntu2004.brenta.org, operating system: Ubuntu Linux 20.04 (64 bit)

Native FLoM debugging tool

Sometimes debugging becomes difficult, especially when you have to deal with networks, firewalls, public and private addresses and so on.
For some complex features, FLoM provide a native debugging tool that can help the system engineer in understanding the root cause of an issue.

Setting up the certification authority and the required certificates

The instructions that are shown below are sufficient for a basic TLS set-up, for more advanced configurations please refer to specific documentaion like for exampe OpenSSL Certificate Authority.

Creating a CA (Certification Authority) of name CA1

Connect to node1, and execute these commands to create the directory structure:

tiian@ubuntu1004:~$ mkdir flom_ssl
tiian@ubuntu1004:~$ cd flom_ssl
tiian@ubuntu1004:~/flom_ssl$ mkdir CA1
tiian@ubuntu1004:~/flom_ssl$ cd CA1
tiian@ubuntu1004:~/flom_ssl/CA1$ mkdir certs crl newcerts private
tiian@ubuntu1004:~/flom_ssl/CA1$ echo "01" > serial
tiian@ubuntu1004:~/flom_ssl/CA1$ cp /dev/null index.txt
tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la
total 28
drwxr-xr-x 6 tiian tiian 4096 2020-11-14 12:04 .
drwxr-xr-x 3 tiian tiian 4096 2020-11-14 12:04 ..
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 12:04 certs
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 12:04 crl
-rw-r--r-- 1 tiian tiian    0 2020-11-14 12:04 index.txt
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 12:04 newcerts
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 12:04 private
-rw-r--r-- 1 tiian tiian    3 2020-11-14 12:04 serial

Pick-up a openssl.cnf example file; FLoM provide a pre-configured file in directory /usr/local/share/doc/flom/:

tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la /usr/local/share/doc/flom/flom_openssl.conf
-rw-r--r-- 1 root root 9433 2020-11-13 21:39 /usr/local/share/doc/flom/flom_openssl.conf

copy it locally:

tiian@ubuntu1004:~/flom_ssl/CA1$ cp /usr/local/share/doc/flom/flom_openssl.conf .

Generate the certificate for the CA, use a secret password and pass something like “CA for FLoM Channel Encryption” for the Common Name:

tiian@ubuntu1004:~/flom_ssl/CA1$ openssl req -new -x509 -keyout private/cakey.pem -out cacert.pem -days 3650 -config flom_openssl.conf
Generating a 2048 bit RSA private key
...............................................................................................+++
................................................+++
writing new private key to 'private/cakey.pem'
Enter PEM pass phrase:
Verifying - Enter PEM pass phrase:
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IT]:
State or Province Name (full name) [Treviso]:
Locality Name (eg, city) [Mogliano Veneto]:
Organization Name (eg, company) [www.tiian.org]:
Organizational Unit Name (eg, section) [FLoM Project]:
Common Name (eg, YOUR name) []:CA for FLoM Channel Encryption
Email Address []:

File cacert.pem contains the X.509 certificate of the certification authority you have just created and file private/cakey.pem contains the private key associated to the certification authority.

tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la cacert.pem private/cakey.pem
-rw-r--r-- 1 tiian tiian 1667 2020-11-14 12:15 cacert.pem
-rw-r--r-- 1 tiian tiian 1743 2020-11-14 12:15 private/cakey.pem

Creating a first X.509 certificate

To implement a channel encryption configuration just one certificate is enough.

Now you have to execute 4 commands; reply with the password used before when the system asks for it, pass something like “Generic FLoM node” for the Common Name:

tiian@ubuntu1004:~/flom_ssl/CA1$ openssl req -nodes -new -x509 -keyout first_key.pem -out first_req.pem -days 3650 -config flom_openssl.conf
tiian@ubuntu1004:~/flom_ssl/CA1$ openssl x509 -x509toreq -in first_req.pem -signkey first_key.pem -out tmp.pem
tiian@ubuntu1004:~/flom_ssl/CA1$ openssl ca -config flom_openssl.conf -policy policy_anything -out first_cert.pem -infiles tmp.pem
tiian@ubuntu1004:~/flom_ssl/CA1$ rm tmp.pem

The output should be something like this:

tiian@ubuntu1004:~/flom_ssl/CA1$ openssl req -nodes -new -x509 -keyout first_key.pem -out first_req.pem -days 3650 -config flom_openssl.conf
Generating a 2048 bit RSA private key
................................................+++
.............................................................................................................+++
writing new private key to 'first_key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IT]:
State or Province Name (full name) [Treviso]:
Locality Name (eg, city) [Mogliano Veneto]:
Organization Name (eg, company) [www.tiian.org]:
Organizational Unit Name (eg, section) [FLoM Project]:
Common Name (eg, YOUR name) []:Generic FLoM node
Email Address []:
tiian@ubuntu1004:~/flom_ssl/CA1$ openssl x509 -x509toreq -in first_req.pem -signkey first_key.pem -out tmp.pem
Getting request Private Key
Generating certificate request
tiian@ubuntu1004:~/flom_ssl/CA1$ openssl ca -config flom_openssl.conf -policy policy_anything -out first_cert.pem -infiles tmp.pem
Using configuration from flom_openssl.conf
Enter pass phrase for ./private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Nov 14 11:23:35 2020 GMT
            Not After : Nov 14 11:23:35 2021 GMT
        Subject:
            countryName               = IT
            stateOrProvinceName       = Treviso
            localityName              = Mogliano Veneto
            organizationName          = www.tiian.org
            organizationalUnitName    = FLoM Project
            commonName                = Generic FLoM node
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                6C:DB:B3:80:DD:3A:CB:56:A0:F9:BF:36:30:04:D3:AB:22:11:1E:65
            X509v3 Authority Key Identifier:
                keyid:E1:6A:F2:1C:8F:A3:C9:B1:5E:6C:C5:A8:13:81:B9:31:FD:46:E1:97

Certificate is to be certified until Nov 14 11:23:35 2021 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
tiian@ubuntu1004:~/flom_ssl/CA1$ rm tmp.pem

Don’t forget to remove the file “tmp.pem”. If everything is fine, you must have two files: first_cert.pem contains the X.509 certificate for your FLoM node(s) and first_key.pem contains the private key associated to the certicate:

tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la first_cert.pem first_key.pem
-rw-r--r-- 1 tiian tiian 4655 2020-11-14 12:23 first_cert.pem
-rw-r--r-- 1 tiian tiian 1675 2020-11-14 12:23 first_key.pem

Certificate “installation”

Only 3 files are needed to FLoM process (flom):

first_cert.pem
first_key.pem
cacert.pem

copy them in a easy to use place on both systems. Local copy:

tiian@ubuntu1004:~/flom_ssl/CA1$ mkdir /tmp/flom_ssl
tiian@ubuntu1004:~/flom_ssl/CA1$ cp cacert.pem first_cert.pem first_key.pem /tmp/flom_ssl/
tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la /tmp/flom_ssl/
total 24
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 12:27 .
drwxrwxrwt 6 root  root  4096 2020-11-14 12:27 ..
-rw-r--r-- 1 tiian tiian 1667 2020-11-14 12:27 cacert.pem
-rw-r--r-- 1 tiian tiian 4655 2020-11-14 12:27 first_cert.pem
-rw-r--r-- 1 tiian tiian 1675 2020-11-14 12:27 first_key.pem

Remote copy:

tiian@ubuntu1004:~/flom_ssl/CA1$ scp -r /tmp/flom_ssl/ tiian@ubuntu2004.brenta.org:/tmp
Enter passphrase for key '/home/tiian/.ssh/id_rsa':
first_cert.pem                                100% 4655     4.6KB/s   00:00
cacert.pem                                    100% 1667     1.6KB/s   00:00
first_key.pem                                 100% 1675     1.6KB/s   00:00

Check the content in node2:

tiian@ubuntu2004:~$ ls -la /tmp/flom_ssl/
total 24
drwxr-xr-x  2 tiian tiian 4096 Nov 14 12:29 .
drwxrwxrwt 14 root  root  4096 Nov 14 12:29 ..
-rw-r--r--  1 tiian tiian 1667 Nov 14 12:29 cacert.pem
-rw-r--r--  1 tiian tiian 4655 Nov 14 12:29 first_cert.pem
-rw-r--r--  1 tiian tiian 1675 Nov 14 12:29 first_key.pem

Debugging TLS (channel encryption security level) with FLoM

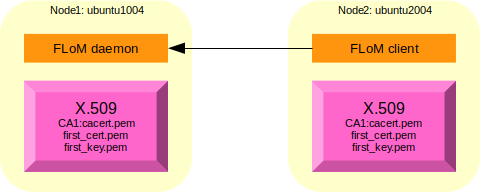

The picture shows the debug scenario:

Setting a trace mask to trace the messages produced by flom_tls and flom_debug modules can help to troubleshoot a possible issue.

These are the commands to activate tracing and start a FLoM debug server using TLS inside node1:

tiian@ubuntu1004:~$ export FLOM_TRACE_MASK=0x300000
tiian@ubuntu1004:~$ echo $FLOM_TRACE_MASK
0x300000
tiian@ubuntu1004:~$ flom --debug-feature=tls.server -a ubuntu1004.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no

These are the commands to activate tracing and to start a FLoM debug client using TLS inside node2:

tiian@ubuntu2004:~$ export FLOM_TRACE_MASK=0x300000
tiian@ubuntu2004:~$ echo $FLOM_TRACE_MASK
0x270000
tiian@ubuntu2004:~$ flom --debug-feature=tls.client -a ubuntu1004.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no

This is the output obtained on node1 (debug server):

2020-11-14 21:26:35.082056 [1254/0x1ced540] flom_debug_features
2020-11-14 21:26:35.082105 [1254/0x1ced540] flom_debug_features: name='tls.server'
2020-11-14 21:26:35.082110 [1254/0x1ced540] flom_debug_features_tls_server
2020-11-14 21:26:35.082122 [1254/0x1ced540] flom_tls_init: calling SSL_library_init()...
2020-11-14 21:26:35.082170 [1254/0x1ced540] flom_tls_init: calling SSL_load_error_strings()...
2020-11-14 21:26:35.082497 [1254/0x1ced540] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-14 21:26:35.082549 [1254/0x1ced540] flom_tls_context
2020-11-14 21:26:35.082554 [1254/0x1ced540] flom_tls_context: setting TLS/SSL method to TLSv1_server_method()
2020-11-14 21:26:35.082681 [1254/0x1ced540] flom_tls_context: SSL_CTX_set_verify(0x1d18b90, 3, flom_tls_callback)
2020-11-14 21:26:35.082692 [1254/0x1ced540] flom_tls_context/excp=2/ret_cod=0/errno=2
2020-11-14 21:26:35.082696 [1254/0x1ced540] flom_tls_set_cert
2020-11-14 21:26:35.082699 [1254/0x1ced540] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/first_cert.pem', SSL_FILETYPE_PEM)
2020-11-14 21:26:35.082802 [1254/0x1ced540] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/first_key.pem', SSL_FILETYPE_PEM)
2020-11-14 21:26:35.082839 [1254/0x1ced540] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-14 21:26:35.082844 [1254/0x1ced540] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-14 21:26:35.082887 [1254/0x1ced540] flom_tls_set_cert/excp=4/ret_cod=0/errno=2
2020-11-14 21:27:04.563407 [1254/0x1ced540] flom_debug_features_tls_server: incoming connection address data: addrlen=16; IPv4 address, sin_port=53050, sin_addr='192.168.123.92'
2020-11-14 21:27:04.563446 [1254/0x1ced540] flom_tls_accept
2020-11-14 21:27:04.563450 [1254/0x1ced540] flom_tls_prepare
2020-11-14 21:27:04.563485 [1254/0x1ced540] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-14 21:27:04.564085 [1254/0x1ced540] flom_tls_accept/SSL_accept: SSL error=1 (SSL_ERROR_SSL)
2020-11-14 21:27:04.564094 [1254/0x1ced540] flom_tls_accept/SSL_accept: error:1408F10B:SSL routines:SSL3_GET_RECORD:wrong version number
2020-11-14 21:27:04.564111 [1254/0x1ced540] flom_tls_accept/excp=1/ret_cod=-405/errno=0
2020-11-14 21:27:04.564146 [1254/0x1ced540] flom_debug_features_tls_server/excp=6/ret_cod=-405/errno=0
2020-11-14 21:27:04.564149 [1254/0x1ced540] flom_debug_features/excp=1/ret_cod=-405/errno=0

This is the output obtained on node2 (debug client):

2020-11-14 21:27:04.562478 [1172/0x55686eafc600] flom_debug_features
2020-11-14 21:27:04.562523 [1172/0x55686eafc600] flom_debug_features: name='tls.client'
2020-11-14 21:27:04.562527 [1172/0x55686eafc600] flom_debug_features_tls_client
2020-11-14 21:27:04.562532 [1172/0x55686eafc600] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-14 21:27:04.563365 [1172/0x55686eafc600] flom_tls_init: calling SSL_load_error_strings()...
2020-11-14 21:27:04.563458 [1172/0x55686eafc600] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-14 21:27:04.563465 [1172/0x55686eafc600] flom_tls_context
2020-11-14 21:27:04.563467 [1172/0x55686eafc600] flom_tls_context: setting TLS/SSL method to TLS_client_method()
2020-11-14 21:27:04.563542 [1172/0x55686eafc600] flom_tls_context: SSL_CTX_set_verify(0x55686eb037d0, 1, flom_tls_callback)
2020-11-14 21:27:04.563547 [1172/0x55686eafc600] flom_tls_context/excp=2/ret_cod=0/errno=2
2020-11-14 21:27:04.563549 [1172/0x55686eafc600] flom_tls_set_cert
2020-11-14 21:27:04.563551 [1172/0x55686eafc600] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/first_cert.pem', SSL_FILETYPE_PEM)
2020-11-14 21:27:04.563652 [1172/0x55686eafc600] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/first_key.pem', SSL_FILETYPE_PEM)
2020-11-14 21:27:04.563690 [1172/0x55686eafc600] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-14 21:27:04.563702 [1172/0x55686eafc600] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-14 21:27:04.563752 [1172/0x55686eafc600] flom_tls_set_cert/excp=4/ret_cod=0/errno=2
2020-11-14 21:27:04.565337 [1172/0x55686eafc600] flom_tls_connect
2020-11-14 21:27:04.565352 [1172/0x55686eafc600] flom_tls_prepare
2020-11-14 21:27:04.565387 [1172/0x55686eafc600] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-14 21:27:04.566002 [1172/0x55686eafc600] flom_tls_connect/SSL_connect: SSL error=1 (SSL_ERROR_SSL)
2020-11-14 21:27:04.566015 [1172/0x55686eafc600] flom_tls_connect/SSL_connect: error:1425F102:SSL routines:ssl_choose_client_version:unsupported protocol
2020-11-14 21:27:04.566029 [1172/0x55686eafc600] flom_tls_connect/excp=1/ret_cod=-406/errno=0
2020-11-14 21:27:04.566058 [1172/0x55686eafc600] flom_debug_features_tls_client/excp=4/ret_cod=-406/errno=0
2020-11-14 21:27:04.566061 [1172/0x55686eafc600] flom_debug_features/excp=1/ret_cod=-406/errno=0

Ubuntu 10.04 uses an old version of the TLS protocol and it can’t handshake with Ubuntu 20.04 (by default). Repeating the test using a couple of recent systems like CentOS 8.2 and Ubuntu 20.04, a different result is obtained.

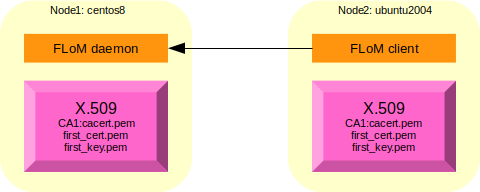

The picture shows the new debug scenario:

Certificate “installation”

Copy the 3 files both to CentOS 8.2 and to Ubuntu 20.04:

tiian@ubuntu1004:~/flom_ssl/CA1$ mkdir /tmp/flom_ssl
tiian@ubuntu1004:~/flom_ssl/CA1$ cp cacert.pem first_cert.pem first_key.pem /tmp/flom_ssl/
tiian@ubuntu1004:~/flom_ssl/CA1$ ls -la /tmp/flom_ssl/
total 24
drwxr-xr-x 2 tiian tiian 4096 2020-11-14 19:15 .
drwxrwxrwt 5 root  root  4096 2020-11-14 19:15 ..
-rw-r--r-- 1 tiian tiian 1667 2020-11-14 19:15 cacert.pem
-rw-r--r-- 1 tiian tiian 4655 2020-11-14 19:15 first_cert.pem
-rw-r--r-- 1 tiian tiian 1675 2020-11-14 19:15 first_key.pem
tiian@ubuntu1004:~/flom_ssl/CA1$ scp -r /tmp/flom_ssl/ tiian@centos8.brenta.org:/tmp
Enter passphrase for key '/home/tiian/.ssh/id_rsa':
first_cert.pem                                100% 4655     4.6KB/s   00:00
cacert.pem                                    100% 1667     1.6KB/s   00:00
first_key.pem                                 100% 1675     1.6KB/s   00:00
tiian@ubuntu1004:~/flom_ssl/CA1$ scp -r /tmp/flom_ssl/ tiian@ubuntu2004.brenta.org:/tmp
Enter passphrase for key '/home/tiian/.ssh/id_rsa':
first_cert.pem                                100% 4655     4.6KB/s   00:00
cacert.pem                                    100% 1667     1.6KB/s   00:00
first_key.pem                                 100% 1675     1.6KB/s   00:00

Activate a debug TLS server in the first node (CentOS 8.2):

[tiian@centos8 ~]$ export FLOM_TRACE_MASK=0x300000
[tiian@centos8 ~]$ echo $FLOM_TRACE_MASK
0x300000
[tiian@centos8 ~]$ flom --debug-feature=tls.server -a centos8.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no
2020-11-14 19:29:48.335478 [58709/0x14dfc00] flom_debug_features
2020-11-14 19:29:48.335525 [58709/0x14dfc00] flom_debug_features: name='tls.server'
2020-11-14 19:29:48.335529 [58709/0x14dfc00] flom_debug_features_tls_server
2020-11-14 19:29:48.335536 [58709/0x14dfc00] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-14 19:29:48.336621 [58709/0x14dfc00] flom_tls_init: calling SSL_load_error_strings()...
2020-11-14 19:29:48.336856 [58709/0x14dfc00] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-14 19:29:48.336871 [58709/0x14dfc00] flom_tls_context
2020-11-14 19:29:48.336874 [58709/0x14dfc00] flom_tls_context: setting TLS/SSL method to TLS_server_method()
2020-11-14 19:29:48.337268 [58709/0x14dfc00] flom_tls_context: SSL_CTX_set_verify(0x14e6da0, 3, flom_tls_callback)
2020-11-14 19:29:48.337284 [58709/0x14dfc00] flom_tls_context/excp=2/ret_cod=0/errno=2
2020-11-14 19:29:48.337287 [58709/0x14dfc00] flom_tls_set_cert
2020-11-14 19:29:48.337290 [58709/0x14dfc00] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/first_cert.pem', SSL_FILETYPE_PEM)
2020-11-14 19:29:48.337549 [58709/0x14dfc00] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/first_key.pem', SSL_FILETYPE_PEM)
2020-11-14 19:29:48.337602 [58709/0x14dfc00] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-14 19:29:48.337611 [58709/0x14dfc00] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-14 19:29:48.337950 [58709/0x14dfc00] flom_tls_set_cert/excp=4/ret_cod=0/errno=2
2020-11-14 19:30:02.306300 [58709/0x14dfc00] flom_debug_features_tls_server: incoming connection address data: addrlen=16; IPv4 address, sin_port=35308, sin_addr='192.168.123.92'
2020-11-14 19:30:02.306345 [58709/0x14dfc00] flom_tls_accept
2020-11-14 19:30:02.306352 [58709/0x14dfc00] flom_tls_prepare
2020-11-14 19:30:02.306408 [58709/0x14dfc00] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-14 19:30:02.310324 [58709/0x14dfc00] flom_tls_callback: preverify_ok=1
2020-11-14 19:30:02.310341 [58709/0x14dfc00] flom_tls_callback: ret_cod=1
2020-11-14 19:30:02.310579 [58709/0x14dfc00] flom_tls_callback: preverify_ok=1
2020-11-14 19:30:02.310593 [58709/0x14dfc00] flom_tls_callback: ret_cod=1
2020-11-14 19:30:02.311028 [58709/0x14dfc00] flom_tls_accepted: connection accepted with TLS_AES_256_GCM_SHA384 encryption
2020-11-14 19:30:02.311043 [58709/0x14dfc00] flom_tls_cert_parse
2020-11-14 19:30:02.311057 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311066 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311071 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311075 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311079 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311083 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311089 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311094 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311101 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311105 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311358 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311365 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311371 [58709/0x14dfc00] flom_tls_cert_parse: issuer fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Channel Encryption
2020-11-14 19:30:02.311682 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311698 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311701 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311704 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311706 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311709 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311714 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311716 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311718 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311721 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311723 [58709/0x14dfc00] flom_tls_cert_struct_fill
2020-11-14 19:30:02.311725 [58709/0x14dfc00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.311728 [58709/0x14dfc00] flom_tls_cert_parse: subject fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=Generic FLoM node
2020-11-14 19:30:02.311743 [58709/0x14dfc00] flom_tls_cert_parse/excp=4/ret_cod=0/errno=0
2020-11-14 19:30:02.311746 [58709/0x14dfc00] flom_tls_accept/excp=3/ret_cod=0/errno=0
2020-11-14 19:30:02.311750 [58709/0x14dfc00] flom_tls_recv_msg
2020-11-14 19:30:02.311753 [58709/0x14dfc00] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-14 19:30:02.311766 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 'aa0025'
2020-11-14 19:30:02.311906 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 '217cc2'
2020-11-14 19:30:02.311914 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 '4efb98'
2020-11-14 19:30:02.311917 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 '3dff5b'
2020-11-14 19:30:02.311919 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 'fb3611'
2020-11-14 19:30:02.311922 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=2 '29'
2020-11-14 19:30:02.311932 [58709/0x14dfc00] flom_tls_recv_msg: read_bytes=6 '</msg>'
2020-11-14 19:30:02.311935 [58709/0x14dfc00] flom_tls_recv_msg: received message is 'aa0025217cc24efb983dff5bfb361129</msg>' of 38 chars
2020-11-14 19:30:02.311937 [58709/0x14dfc00] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-14 19:30:02.311940 [58709/0x14dfc00] flom_debug_features_tls_server: received 38 bytes, 'aa0025217cc24efb983dff5bfb361129</msg>'
2020-11-14 19:30:02.312001 [58709/0x14dfc00] flom_debug_features_tls_server: sending 32 bytes, 'b4eae148592d4d128df8f76987b9ac08'
2020-11-14 19:30:02.312007 [58709/0x14dfc00] flom_tls_send
2020-11-14 19:30:02.312075 [58709/0x14dfc00] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-14 19:30:02.312083 [58709/0x14dfc00] flom_debug_features_tls_server: sending 6 bytes, '</msg>'
2020-11-14 19:30:02.312087 [58709/0x14dfc00] flom_tls_send
2020-11-14 19:30:02.312096 [58709/0x14dfc00] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-14 19:30:02.312300 [58709/0x14dfc00] flom_debug_features_tls_server/excp=15/ret_cod=0/errno=0
2020-11-14 19:30:02.312311 [58709/0x14dfc00] flom_debug_features/excp=1/ret_cod=0/errno=0

Activate a debug TLS client in the second node (Ubuntu 20.04):

tiian@ubuntu2004:~/flom$ export FLOM_TRACE_MASK=0x300000
tiian@ubuntu2004:~/flom$ echo $FLOM_TRACE_MASK
0x300000
tiian@ubuntu2004:~/flom$ flom --debug-feature=tls.client -a centos8.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no
2020-11-14 19:30:02.307742 [1348/0x561122ac9600] flom_debug_features
2020-11-14 19:30:02.307831 [1348/0x561122ac9600] flom_debug_features: name='tls.client'
2020-11-14 19:30:02.307847 [1348/0x561122ac9600] flom_debug_features_tls_client
2020-11-14 19:30:02.307864 [1348/0x561122ac9600] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-14 19:30:02.309783 [1348/0x561122ac9600] flom_tls_init: calling SSL_load_error_strings()...
2020-11-14 19:30:02.310013 [1348/0x561122ac9600] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-14 19:30:02.310038 [1348/0x561122ac9600] flom_tls_context
2020-11-14 19:30:02.310058 [1348/0x561122ac9600] flom_tls_context: setting TLS/SSL method to TLS_client_method()
2020-11-14 19:30:02.310252 [1348/0x561122ac9600] flom_tls_context: SSL_CTX_set_verify(0x561122ad0710, 1, flom_tls_callback)
2020-11-14 19:30:02.310276 [1348/0x561122ac9600] flom_tls_context/excp=2/ret_cod=0/errno=2
2020-11-14 19:30:02.310288 [1348/0x561122ac9600] flom_tls_set_cert
2020-11-14 19:30:02.310299 [1348/0x561122ac9600] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/first_cert.pem', SSL_FILETYPE_PEM)
2020-11-14 19:30:02.310540 [1348/0x561122ac9600] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/first_key.pem', SSL_FILETYPE_PEM)
2020-11-14 19:30:02.310623 [1348/0x561122ac9600] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-14 19:30:02.310647 [1348/0x561122ac9600] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-14 19:30:02.310804 [1348/0x561122ac9600] flom_tls_set_cert/excp=4/ret_cod=0/errno=2
2020-11-14 19:30:02.312219 [1348/0x561122ac9600] flom_tls_connect
2020-11-14 19:30:02.312235 [1348/0x561122ac9600] flom_tls_prepare
2020-11-14 19:30:02.312259 [1348/0x561122ac9600] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-14 19:30:02.314662 [1348/0x561122ac9600] flom_tls_callback: preverify_ok=1
2020-11-14 19:30:02.314685 [1348/0x561122ac9600] flom_tls_callback: ret_cod=1
2020-11-14 19:30:02.314747 [1348/0x561122ac9600] flom_tls_callback: preverify_ok=1
2020-11-14 19:30:02.314755 [1348/0x561122ac9600] flom_tls_callback: ret_cod=1
2020-11-14 19:30:02.316070 [1348/0x561122ac9600] flom_tls_connect: connection established with TLS_AES_256_GCM_SHA384 encryption
2020-11-14 19:30:02.316087 [1348/0x561122ac9600] flom_tls_cert_parse
2020-11-14 19:30:02.316101 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316107 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316113 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316118 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316123 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316128 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316133 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316138 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316143 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316148 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316153 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316158 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316163 [1348/0x561122ac9600] flom_tls_cert_parse: issuer fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Channel Encryption
2020-11-14 19:30:02.316204 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316216 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316223 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316228 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316233 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316238 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316243 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316248 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316253 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316258 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316262 [1348/0x561122ac9600] flom_tls_cert_struct_fill
2020-11-14 19:30:02.316267 [1348/0x561122ac9600] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-14 19:30:02.316272 [1348/0x561122ac9600] flom_tls_cert_parse: subject fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=Generic FLoM node
2020-11-14 19:30:02.316285 [1348/0x561122ac9600] flom_tls_cert_parse/excp=4/ret_cod=0/errno=0
2020-11-14 19:30:02.316291 [1348/0x561122ac9600] flom_tls_connect/excp=3/ret_cod=0/errno=0
2020-11-14 19:30:02.316327 [1348/0x561122ac9600] flom_debug_features_tls_client: sending 32 bytes, 'aa0025217cc24efb983dff5bfb361129'
2020-11-14 19:30:02.316336 [1348/0x561122ac9600] flom_tls_send
2020-11-14 19:30:02.316374 [1348/0x561122ac9600] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-14 19:30:02.316384 [1348/0x561122ac9600] flom_debug_features_tls_client: sending 6 bytes, '</msg>'
2020-11-14 19:30:02.316389 [1348/0x561122ac9600] flom_tls_send
2020-11-14 19:30:02.316398 [1348/0x561122ac9600] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-14 19:30:02.316405 [1348/0x561122ac9600] flom_tls_recv_msg
2020-11-14 19:30:02.316410 [1348/0x561122ac9600] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-14 19:30:02.318252 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 'b4eae1'
2020-11-14 19:30:02.318400 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 '48592d'
2020-11-14 19:30:02.318526 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 '4d128d'
2020-11-14 19:30:02.318631 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 'f8f769'
2020-11-14 19:30:02.318688 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 '87b9ac'
2020-11-14 19:30:02.318782 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=2 '08'
2020-11-14 19:30:02.318839 [1348/0x561122ac9600] flom_tls_recv_msg: read_bytes=6 '</msg>'
2020-11-14 19:30:02.319046 [1348/0x561122ac9600] flom_tls_recv_msg: received message is 'b4eae148592d4d128df8f76987b9ac08</msg>' of 38 chars
2020-11-14 19:30:02.319142 [1348/0x561122ac9600] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-14 19:30:02.319274 [1348/0x561122ac9600] flom_debug_features_tls_client: received 38 bytes, 'b4eae148592d4d128df8f76987b9ac08</msg>'
2020-11-14 19:30:02.319600 [1348/0x561122ac9600] flom_debug_features_tls_client/excp=12/ret_cod=0/errno=0
2020-11-14 19:30:02.319718 [1348/0x561122ac9600] flom_debug_features/excp=1/ret_cod=0/errno=0

The key messages are the following ones:

The debug client send its unique ID:

2020-11-14 19:30:02.316327 [1348/0x561122ac9600] flom_debug_features_tls_client: sending 32 bytes, 'aa0025217cc24efb983dff5bfb361129'

the debug server receives the unique ID sent by the debug client and replies with its own unique ID:

2020-11-14 19:30:02.311940 [58709/0x14dfc00] flom_debug_features_tls_server: received 38 bytes, 'aa0025217cc24efb983dff5bfb361129</msg>'
2020-11-14 19:30:02.312001 [58709/0x14dfc00] flom_debug_features_tls_server: sending 32 bytes, 'b4eae148592d4d128df8f76987b9ac08'

the debug client receives the unique ID sent by the debug server:

2020-11-14 19:30:02.319274 [1348/0x561122ac9600] flom_debug_features_tls_client: received 38 bytes, 'b4eae148592d4d128df8f76987b9ac08</msg>'

Remove trace mask , then restart the debug server on node1:

[tiian@centos8 ~]$ unset FLOM_TRACE_MASK
[tiian@centos8 ~]$ flom --debug-feature=tls.server -a centos8.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no
[tiian@centos8 ~]$ echo $?
0

Remove trace mask, then restart the debug client on node2:

tiian@ubuntu2004:~/flom$ unset FLOM_TRACE_MASK
tiian@ubuntu2004:~/flom$ flom --debug-feature=tls.client -a centos8.brenta.org --tls-certificate=/tmp/flom_ssl/first_cert.pem --tls-private-key=/tmp/flom_ssl/first_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=no
tiian@ubuntu2004:~/flom$ echo $?
0

When everything is fine, no messages on the terminal are printed and the exit code of the flom command is 0.

Configuration hints

A more convenient way to setup all the TLS parameters is to use a FLoM configuration file: these are the keys you have to customize:

[TLS]
# Name of the file that contains the X.509 certificate assigned to this peer
# (Uncomment below row if necessary)
#TlsCertificate=cert.pem
# Name of the file that contains the private key of this peer
# (Uncomment below row if necessary)
#TlsPrivateKey=priv_key.pem
# Name of the file that contains the X.509 certificate of the certification
# authority used to sign the certificate of this peer
# (Uncomment below row if necessary)
#TlsCaCertificate=ca_cert.pem
# Check if the CommonName (CN) of the peer certificate matches the peer unique
# identifier; valid values are "yes" and "no" (case insensitive)
# (Uncomment below row if necessary)
#TlsCheckPeerId=yes

System message logging

Both client and server write logging messages on the system log.

On the server side (node1):

[tiian@centos8 ~]$ sudo tail /var/log/messages
Nov 14 19:33:59 centos8 flom[58719]: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Channel Encryption
Nov 14 19:33:59 centos8 flom[58719]: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=Generic FLoM node

On the client side (node2), these are the corresponding messages:

tiian@ubuntu2004:~/flom$ sudo tail /var/log/syslog
Nov 14 19:33:59 ubuntu2004 flom: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Channel Encryption
Nov 14 19:33:59 ubuntu2004 flom: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=Generic FLoM node

tiian.github.io

Quality First Free Software

Channel Encryption Debugging

Native FLoM debugging tool

Setting up the certification authority and the required certificates

Creating a CA (Certification Authority) of name CA1

Creating a first X.509 certificate

Certificate “installation”

Debugging TLS (channel encryption security level) with FLoM

Certificate “installation”

The key messages are the following ones:

Configuration hints

System message logging
