Use Case 10: executes a maximum of N parallel processes

Sometimes you face a problem like this: “I have to run a maximum of 3 jobs at the same time, no more”.
A typical usage is workload balancing: you want to limit the maximum number of some type of processes, but you don’t want only one because you can run a few of them.

Open three terminals and try this experiment:

inside the first terminal write this command at prompt, but do not press “enter”: “flom -r ping[2] -q 1 -- ping -c 5 localhost”
inside the second terminal write this command at prompt, but do not press “enter”: “flom -r ping[2] -q 1 -- ping -c 10 localhost”
inside the third terminal write this command at prompt, but do not press “enter”: “flom -r ping[2] -q 1 -- ping -c 10 localhost”
now press “enter” key at the first terminal
switch to second terminal and press “enter” key
switch to third terminal and press “enter” key

Expected result:

the first terminal starts to display ping output immediately
the second terminal starts to display ping output immediately
the third terminal waits some seconds (until first terminal activity ends) and then starts to display ping output

Terminal 1 output:

tiian@mojan:/usr$ flom -r ping[2] -q 1 -- ping -c 5 localhost
PING localhost (127.0.0.1) 56(84) bytes of data.
64 bytes from localhost (127.0.0.1): icmp_seq=1 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=2 ttl=64 time=0.045 ms
64 bytes from localhost (127.0.0.1): icmp_seq=3 ttl=64 time=0.043 ms
64 bytes from localhost (127.0.0.1): icmp_seq=4 ttl=64 time=0.052 ms
64 bytes from localhost (127.0.0.1): icmp_seq=5 ttl=64 time=0.049 ms

--- localhost ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 3999ms
rtt min/avg/max/mdev = 0.043/0.047/0.052/0.006 ms
tiian@mojan:/usr$ echo $?
0
tiian@mojan:/usr$

Terminal 2 output:

tiian@mojan:/usr$ flom -r ping[2] -q 1 -- ping -c 10 localhost
PING localhost (127.0.0.1) 56(84) bytes of data.
64 bytes from localhost (127.0.0.1): icmp_seq=1 ttl=64 time=0.050 ms
64 bytes from localhost (127.0.0.1): icmp_seq=2 ttl=64 time=0.047 ms
64 bytes from localhost (127.0.0.1): icmp_seq=3 ttl=64 time=0.036 ms
64 bytes from localhost (127.0.0.1): icmp_seq=4 ttl=64 time=0.039 ms
64 bytes from localhost (127.0.0.1): icmp_seq=5 ttl=64 time=0.042 ms
64 bytes from localhost (127.0.0.1): icmp_seq=6 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=7 ttl=64 time=0.051 ms
64 bytes from localhost (127.0.0.1): icmp_seq=8 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=9 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=10 ttl=64 time=0.047 ms

--- localhost ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 8997ms
rtt min/avg/max/mdev = 0.036/0.045/0.051/0.008 ms
tiian@mojan:/usr$ echo $?
0
tiian@mojan:/usr$

Terminal 3 output:

tiian@mojan:/usr$ flom -r ping[2] -q 1 -- ping -c 10 localhost
PING localhost (127.0.0.1) 56(84) bytes of data.
64 bytes from localhost (127.0.0.1): icmp_seq=1 ttl=64 time=0.046 ms
64 bytes from localhost (127.0.0.1): icmp_seq=2 ttl=64 time=0.050 ms
64 bytes from localhost (127.0.0.1): icmp_seq=3 ttl=64 time=0.045 ms
64 bytes from localhost (127.0.0.1): icmp_seq=4 ttl=64 time=0.038 ms
64 bytes from localhost (127.0.0.1): icmp_seq=5 ttl=64 time=0.044 ms
64 bytes from localhost (127.0.0.1): icmp_seq=6 ttl=64 time=0.042 ms
64 bytes from localhost (127.0.0.1): icmp_seq=7 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=8 ttl=64 time=0.047 ms
64 bytes from localhost (127.0.0.1): icmp_seq=9 ttl=64 time=0.048 ms
64 bytes from localhost (127.0.0.1): icmp_seq=10 ttl=64 time=0.042 ms

--- localhost ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 8997ms
rtt min/avg/max/mdev = 0.038/0.045/0.050/0.003 ms
tiian@mojan:/usr$ echo $?
0
tiian@mojan:/usr$

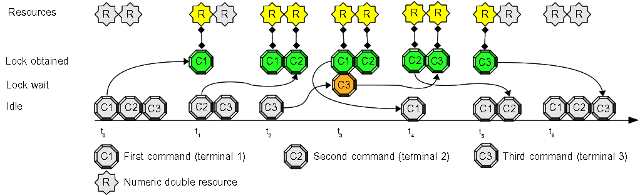

Explanation:

the first command “ping -c 5” locks resource “ping[2]” and pick-up 1 resource unity; the second command “ping -c 10” locks resource “ping[2]” and pick-up the remaining 1 resource unity; the third command “ping -c 10” can not lock resource “ping[2]” because there are no more available unities. When the first command completes it frees 1 resource unity and the third command can be executed.

Some numeric resource details

Naming convention

The name of a numeric resource is composed by 3 elements:

an alphanumeric prefix, like “ping”, “foo”, “bar”, …
left square bracket, “[”
an integer value (decimal base only), like “2”, “12”, “231”, …
right square bracket, “]”

Your attention please!

Resources “foo[3]” and “foo[2]” are distinct resources: the first contains 3 locakable unities, the second contains 2 lockable units.

Supported options

Numeric resources support these options:

-o, --resource-timeout
-q, --resource-quantity

Numeric resources don’t support this option:

-l, --lock-mode because only exclusive lock (“EX”) can be specified

Requested quantity

Different flom invocation can specify different quantities, but the specified quantity can not exceed a resource total quantity.

Summary

This use case explains you how to implement a basic workload manager that allows the execution of a maximum of 2 tasks and put the exceeding submitted job in a wait queue.
