Use Case 15: hierarchical locks

This is the problem you have to solve:

  • there is a file/directory tree starting at some point, for example “/foo”
  • READER shell scripts access any file inside the file/directory tree (for example “/foo/bar/white”) but do not change them
  • WRITER shell scripts access any file inside the file/directory tree (for example “/foo/apple”) and change (update, create, delete) them
  • BACKUP shell script accesses all the files inside the file/directory tree and creates a backup of them

The problem can be explained as:

  • a READER and a WRITER script can not work on the same file at the same time
  • a WRITER can not work on a dir if at least one READER (or one WRITER) is using a file or a dir at a deeper level
  • BACKUP can work only if there are no WRITERs working inside the file/directory tree.

The problem can be solved using two features of FLoM: lock modes and hierarchical resources.

Lock modes

FLoM implements the same lock modes proposed by OpenVMS Distributed Lock Manager; a possible choiche to solve our problem is:

  • using Protected Read (PR) for BACKUP script: it allows others to read, but not to change the locked resource
  • using Protected Read (PR) for READER scripts: it does not allow others to change the locked resource
  • using Exclusive (EX) for WRITER scripts: it stops others activities

Solution test

Just for the sake of simplicity, we will not develop real scripts but we simulate them using ping command with a step by step approach.

one READER and one WRITER running in parallel

The READER script needs to read /foo/bar directory content, while the WRITER script needs to create file apple inside directory /foo/blue.

Open two terminals and try it:

  1. inside the first terminal (READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (WRITER script) write this command at prompt, but do not press “enter”: flom -r /foo/blue/apple -l EX -- ping -c 5 localhost
  3. now press “enter” key at the first terminal
  4. switch to second terminal and press “enter” key

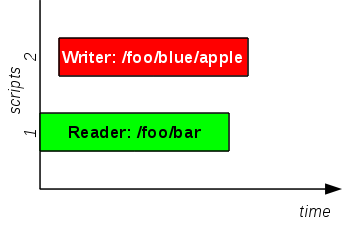

Expected result:

All two ping commands run simultaneously because /foo/blue/apple can be created and modified even if someone else is reading /foo/bar

one READER and one WRITER with synchronization

The READER scripts needs to read /foo/bar directory content, while the WRITER script needs to create file apple inside it.

Open two terminals and try it:

  1. inside the first terminal (READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (WRITER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar/apple -l EX -- ping -c 5 localhost
  3. now press “enter” key at the first terminal
  4. switch to second terminal and press “enter” key

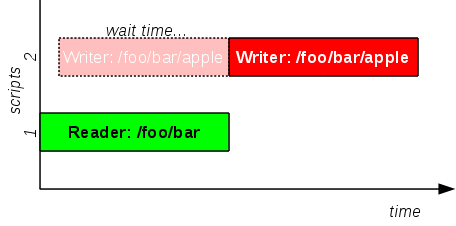

Expected result:

First ping command runs, second ping command waits first command termination and then starts. The behavior does not change if you switch command execution order.
If READER starts to read /foo/bar, WRITER shall not start because it could change /foo/bar content.

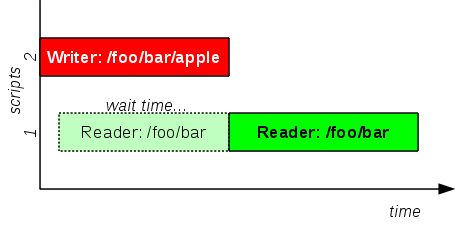

If WRITER starts to create /foo/bar/appple, READER shall not start because /foo/bar content could change in the meantime.

one READER and one WRITER with synchronization (again)

The READER scripts needs to read /foo/bar directory content, while the WRITER script needs to create file apple inside /foo/bar/fruit directory.

Open two terminals and try it:

  1. inside the first terminal (READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (WRITER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar/fruit/apple -l EX -- ping -c 5 localhost
  3. now press “enter” key at the first terminal
  4. switch to second terminal and press “enter” key

Expected result:

First ping command runs, second ping command waits first command termination and then starts. The behavior does not change if you switch command execution order.

Note: from this example we can understand that locking /foo/bar means “lock everything that starts with /foo/bar” and not “lock only /foo/bar directory”

READERs and BACKUP

A READER script needs to read /foo/bar directory content, another READER script needs to read /foo/fruit directory and BACKUP script needs to collect a consistent backup of */foo” file tree.

Open three terminals and try it:

  1. inside the first terminal (first READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (second READER script) write this command at prompt, but do not press “enter”: flom -r /foo/fruit -l PR -- ping -c 5 localhost
  3. inside the third terminal (BACKUP script) write this command at prompt, but do not press “enter”: flom -r /foo -l PR -- ping -c 5 localhost
  4. now press “enter” key at the first terminal
  5. switch to second terminal and press “enter” key
  6. switch to third terminal and press “enter” key

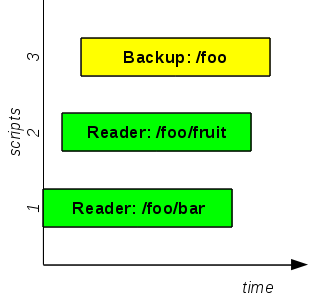

Expected result:

Al three commands run simultaneously because READERs do not disturb each other and BACKUP can produce a consistent backup even if READER scripts are working.

one READER, one WRITER and BACKUP

Coming back to the first example, we add the BACKUP script: the READER script needs to read /foo/bar directory content, the WRITER script needs to create file apple inside directory /foo/blue and BACKUP script needs to collect a consistent backup of /foo file tree.

Open three terminals and try it:

  1. inside the first terminal (READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (WRITER script) write this command at prompt, but do not press “enter”: flom -r /foo/blue/apple -l EX -- ping -c 7 localhost
  3. inside the third terminal (BACKUP script) write this command at prompt, but do not press “enter”: flom -r /foo -l PR -- ping -c 5 localhost
  4. now press “enter” key at the first terminal
  5. switch to second terminal and press “enter” key
  6. switch to third terminal and press “enter” key

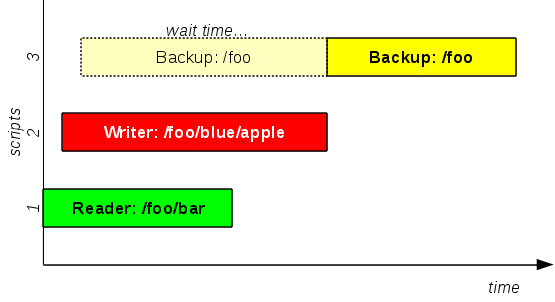

Expected result:

The READER starts to run, the WRITER starts to run because it does not disturb READER’s activity, the BACKUP task waits WRITER end before starting: it can not collect a consistent backup while WRITER task is updating /foo/blue/apple.

one READER, BACKUP and one WRITER

Modifying the previous example, we change the script order execution: the READER script needs to read /foo/bar directory content, the BACKUP script needs to collect a consistent backup of /foo file tree and the WRITER script needs to create file apple inside directory /foo/blue.

Open three terminals and try it:

  1. inside the first terminal (READER script) write this command at prompt, but do not press “enter”: flom -r /foo/bar -l PR -- ping -c 5 localhost
  2. inside the second terminal (BACKUP script) write this command at prompt, but do not press “enter”: flom -r /foo -l PR -- ping -c 7 localhost
  3. inside the third terminal (WRITER script) write this command at prompt, but do not press “enter”: flom -r /foo/blue/apple -l EX -- ping -c 5 localhost
  4. now press “enter” key at the first terminal
  5. switch to second terminal and press “enter” key
  6. switch to third terminal and press “enter” key

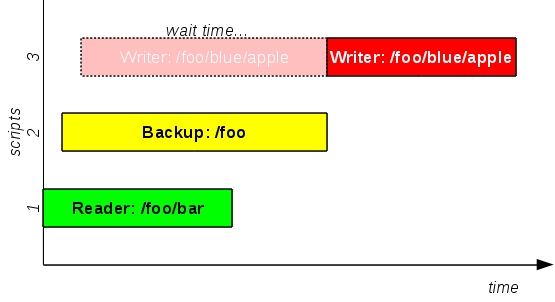

Expected result:

The READER starts to run, the BACKUP starts because it can collect a consisten backup, while the WRITER task must wait BACKUP end before starting: it can not update /foo/blue/apple because until the backup finished.

Summary

This use case shows a complex synchronization scenario with different tasks that access a different levels of a resource tree.
It must be noted that FLoM resources do not need to map to real files: FLoM resources are virtual and can be used to model a synchronization scenario that has not a file counterpart. You might model:

  • invoices, receipts, customers, goods, …
  • furniture, chest of drawers, drawers, socks, shoes, …
  • and so on…

See also

FLoM available arguments are documented in man page: use man flom.
FLoM configuration explains how you can specify flom behavior without using command line arguments.
