#= Configuration example for “Mutual Authentication” security level # The example uses two different nodes; these are the names used during all the example:

• node1, name: ubuntu2004.brenta.org, operating system: Ubuntu Linux 20.04 (64 bit)
• node2, name: centos8.brenta.org, operating system: CentOS 8.2 (64 bit)

It is suggested to understand how Channel Encryption security level configuration works before proceeding with this more complex one.

The page Mutual Authentication Debug explains how to debug this type of configuration in case of issue.

Setting up the certification authority and the required certificates

The instructions that are shown below are sufficient for a basic TLS set-up, for more advanced configurations please refer to specific documentaion like for exampe OpenSSL Certificate Authority.

Creating a CA (Certification Authority) of name CA2

Connect to node1, and execute these commands to create the directory structure:

tiian@ubuntu2004:~$ mkdir -p flom_ssl/CA2
tiian@ubuntu2004:~$ cd flom_ssl/CA2/
tiian@ubuntu2004:~/flom_ssl/CA2$ mkdir certs crl newcerts private
tiian@ubuntu2004:~/flom_ssl/CA2$ echo "01" > serial
tiian@ubuntu2004:~/flom_ssl/CA2$ cp /dev/null index.txt
tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la
total 28
drwxrwxr-x 6 tiian tiian 4096 Nov 15 21:56 .
drwxrwxr-x 3 tiian tiian 4096 Nov 15 21:56 ..
drwxrwxr-x 2 tiian tiian 4096 Nov 15 21:56 certs
drwxrwxr-x 2 tiian tiian 4096 Nov 15 21:56 crl
-rw-rw-r-- 1 tiian tiian    0 Nov 15 21:56 index.txt
drwxrwxr-x 2 tiian tiian 4096 Nov 15 21:56 newcerts
drwxrwxr-x 2 tiian tiian 4096 Nov 15 21:56 private
-rw-rw-r-- 1 tiian tiian    3 Nov 15 21:56 serial

Pick-up a openssl.cnf example file; FLoM provide a pre-configured file in directory /usr/local/share/doc/flom/:

tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la /usr/local/share/doc/flom/flom_openssl.conf
-rw-r--r-- 1 root root 9409 Nov 15 09:46 /usr/local/share/doc/flom/flom_openssl.conf

copy it locally:

tiian@ubuntu2004:~/flom_ssl/CA2$ cp /usr/local/share/doc/flom/flom_openssl.conf .

Generate the certificate for the CA, use a secret password and pass something like “CA for FLoM Mutual Authentication” for Common Name:

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl req -new -x509 -keyout private/cakey.pem -out cacert.pem -days 3650 -config flom_openssl.conf
Generating a RSA private key
..........+++++
......+++++
writing new private key to 'private/cakey.pem'
Enter PEM pass phrase:
Verifying - Enter PEM pass phrase:
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IT]:
State or Province Name (full name) [Treviso]:
Locality Name (eg, city) [Mogliano Veneto]:
Organization Name (eg, company) [www.tiian.org]:
Organizational Unit Name (eg, section) [FLoM Project]:
Common Name (eg, YOUR name) []:CA for FLoM Mutual Authentication
Email Address []:

File cacert.pem contains the X.509 certificate of the certification authority you have just created and file private/cakey.pem contains the private key associated to the certification authority.

tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la cacert.pem private/cakey.pem
-rw-rw-r-- 1 tiian tiian 1712 Nov 15 21:59 cacert.pem
-rw------- 1 tiian tiian 1854 Nov 15 21:59 private/cakey.pem

Creating the first X.509 certificate

To implement a mutual authentication configuration a distinct certificate for every node is necessary.

Retrieving node/system unique ID

FLoM unique ID technology is based on a feature provided by D-Bus.

FLoM behaves like the command dbus-uuidgen –get:

tiian@ubuntu2004:~/flom_ssl/CA2$ flom --unique-id
aa0025217cc24efb983dff5bfb361129

From the above text, the unique ID of node1 is aa0025217cc24efb983dff5bfb361129. The unique ID must be passed to the openssl command when the Common Name associated to the certificate is asked.

Now you have to execute 4 commands:

• the unique ID must be passed to the first command
• the third command asks for a password: the same password used for the certification authority (see above).

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl req -nodes -new -x509 -keyout node1_key.pem -out node1_req.pem -days 3650 -config flom_openssl.conf
tiian@ubuntu2004:~/flom_ssl/CA2$ openssl x509 -x509toreq -in node1_req.pem -signkey node1_key.pem -out tmp.pem
tiian@ubuntu2004:~/flom_ssl/CA2$ openssl ca -config flom_openssl.conf -policy policy_anything -out node1_cert.pem -infiles tmp.pem
tiian@ubuntu2004:~/flom_ssl/CA2$ rm tmp.pem

The output should be something like this:

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl req -nodes -new -x509 -keyout node1_key.pem -out node1_req.pem -days 3650 -config flom_openssl.conf
Generating a RSA private key
...........................+++++
........................................................................+++++
writing new private key to 'node1_key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IT]:
State or Province Name (full name) [Treviso]:
Locality Name (eg, city) [Mogliano Veneto]:
Organization Name (eg, company) [www.tiian.org]:
Organizational Unit Name (eg, section) [FLoM Project]:
Common Name (eg, YOUR name) []:aa0025217cc24efb983dff5bfb361129
Email Address []:

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl x509 -x509toreq -in node1_req.pem -signkey node1_key.pem -out tmp.pem
Getting request Private Key
Generating certificate request

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl ca -config flom_openssl.conf -policy policy_anything -out node1_cert.pem -infiles tmp.pem
Using configuration from flom_openssl.conf
Enter pass phrase for ./private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Nov 15 21:05:08 2020 GMT
            Not After : Nov 15 21:05:08 2021 GMT
        Subject:
            countryName               = IT
            stateOrProvinceName       = Treviso
            localityName              = Mogliano Veneto
            organizationName          = www.tiian.org
            organizationalUnitName    = FLoM Project
            commonName                = aa0025217cc24efb983dff5bfb361129
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                9A:94:05:12:97:D5:15:9B:F9:79:29:F9:83:D4:31:C7:B8:2D:7C:5D
            X509v3 Authority Key Identifier:
                keyid:18:4F:34:EC:90:1F:54:42:B9:2D:02:C3:86:89:00:A5:AA:32:FE:94

Certificate is to be certified until Nov 15 21:05:08 2021 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

tiian@ubuntu2004:~/flom_ssl/CA2$ rm tmp.pem

If everything is fine, you must have two files: node1_cert.pem contains the X.509 certificate for node1 (ubuntu2004) and node1_key.pem contains the private key associated to the certicate:

tiian@ubuntu1004:~/flom_ssl/CA2$ ls -la node1_cert.pem node1_key.pem
-rw-r--r-- 1 tiian tiian 3433 2016-03-30 22:12 node1_cert.pem
-rw-r--r-- 1 tiian tiian  887 2016-03-30 22:11 node1_key.pem

Creating the second X.509 certificate

To implement a mutual authentication configuration a distinct certificate for every node is necessary.

Connect to node2 and retrieve the unique ID:

[tiian@centos8 ~]$ flom --unique-id
b4eae148592d4d128df8f76987b9ac08

From the above text, the unique ID of node2 is b4eae148592d4d128df8f76987b9ac08. The unique ID must be passed to the openssl command when the Common Name associated to the certificate is asked.

Connect to node1 and execute the 4 commands you need to generate the certificate for node2:

• the unique ID must be passed to the first command
• the third command asks for a password: the same password used for the certification authority (see above).

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl req -nodes -new -x509 -keyout node2_key.pem -out node2_req.pem -days 3650 -config flom_openssl.conf
tiian@ubuntu2004:~/flom_ssl/CA2$ openssl x509 -x509toreq -in node2_req.pem -signkey node2_key.pem -out tmp.pem
tiian@ubuntu2004:~/flom_ssl/CA2$ openssl ca -config flom_openssl.conf -policy policy_anything -out node2_cert.pem -infiles tmp.pem
tiian@ubuntu2004:~/flom_ssl/CA2$ rm tmp.pem

The output should be something like this:

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl req -nodes -new -x509 -keyout node2_key.pem -out node2_req.pem -days 3650 -config flom_openssl.conf
Generating a RSA private key
..+++++
......................+++++
writing new private key to 'node2_key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [IT]:
State or Province Name (full name) [Treviso]:
Locality Name (eg, city) [Mogliano Veneto]:
Organization Name (eg, company) [www.tiian.org]:
Organizational Unit Name (eg, section) [FLoM Project]:
Common Name (eg, YOUR name) []:b4eae148592d4d128df8f76987b9ac08
Email Address []:

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl x509 -x509toreq -in node2_req.pem -signkey node2_key.pem -out tmp.pem
Getting request Private Key
Generating certificate request

tiian@ubuntu2004:~/flom_ssl/CA2$ openssl ca -config flom_openssl.conf -policy policy_anything -out node2_cert.pem -infiles tmp.pem
Using configuration from flom_openssl.conf
Enter pass phrase for ./private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 2 (0x2)
        Validity
            Not Before: Nov 15 21:10:22 2020 GMT
            Not After : Nov 15 21:10:22 2021 GMT
        Subject:
            countryName               = IT
            stateOrProvinceName       = Treviso
            localityName              = Mogliano Veneto
            organizationName          = www.tiian.org
            organizationalUnitName    = FLoM Project
            commonName                = b4eae148592d4d128df8f76987b9ac08
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                13:EF:C8:13:4A:52:D2:41:DA:17:48:67:73:0E:F7:20:84:F3:7F:1E
            X509v3 Authority Key Identifier:
                keyid:18:4F:34:EC:90:1F:54:42:B9:2D:02:C3:86:89:00:A5:AA:32:FE:94

Certificate is to be certified until Nov 15 21:10:22 2021 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

tiian@ubuntu2004:~/flom_ssl/CA2$ rm tmp.pem

If everything is fine, you must have two new files: node2_cert.pem contains the X.509 certificate for node2 (centos8) and node2_key.pem contains the private key associated to the certicate:

tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la node2_cert.pem node2_key.pem
-rw-rw-r-- 1 tiian tiian 4706 Nov 15 22:10 node2_cert.pem
-rw------- 1 tiian tiian 1704 Nov 15 22:08 node2_key.pem

Certificate “installation”

Only 3 files are needed to FLoM process (flom):

• node?_cert.pem
• node?_key.pem
• cacert.pem

copy them in a easy to use place on both systems. Pay attention you have to copy different certificate/key pairs to different systems. Local copy:

tiian@ubuntu2004:~/flom_ssl/CA2$ mkdir /tmp/flom_ssl
tiian@ubuntu2004:~/flom_ssl/CA2$ cp cacert.pem node1_cert.pem node1_key.pem /tmp/flom_ssl/
tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la /tmp/flom_ssl/
total 24
drwxrwxr-x  2 tiian tiian 4096 Nov 15 22:15 .
drwxrwxrwt 12 root  root  4096 Nov 15 22:15 ..
-rw-rw-r--  1 tiian tiian 1712 Nov 15 22:15 cacert.pem
-rw-rw-r--  1 tiian tiian 4706 Nov 15 22:15 node1_cert.pem
-rw-------  1 tiian tiian 1704 Nov 15 22:15 node1_key.pem

Remote copy (directory /tmp/flom_ssl/ on node2 must be created in advance):

tiian@ubuntu2004:~/flom_ssl/CA2$ scp -r cacert.pem node2_cert.pem node2_key.pem tiian@centos8.brenta.org:/tmp/flom_ssl/
tiian@centos8.brenta.org's password:
cacert.pem                                    100% 1712     1.9MB/s   00:00
node2_cert.pem                                100% 4706     5.7MB/s   00:00
node2_key.pem                                 100% 1704     2.6MB/s   00:00

Check the content in node2:

[tiian@centos8 ~]$ ls -la /tmp/flom_ssl/
total 20
drwxr-xr-x.  2 tiian tiian   67 Nov 15 22:17 .
drwxrwxrwt. 12 root  root  4096 Nov 15 22:35 ..
-rw-rw-r--.  1 tiian tiian 1712 Nov 15 22:34 cacert.pem
-rw-rw-r--.  1 tiian tiian 4706 Nov 15 22:34 node2_cert.pem
-rw-------.  1 tiian tiian 1704 Nov 15 22:34 node2_key.pem

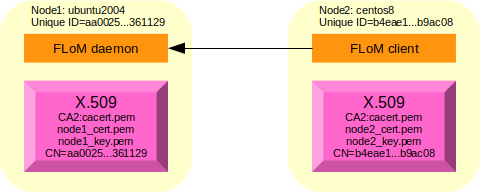

Using TLS (mutual authentication security level) with FLoM

Setting a trace mask to trace the messaged produced by flom_tls and flom_tcp modules can help in troubleshooting possible issues.

This is the command to activate tracing and start a FLoM daemon (server) using TLS inside node1:

tiian@ubuntu2004:~$ export FLOM_TRACE_MASK=0x600000
tiian@ubuntu2004:~$ echo $FLOM_TRACE_MASK
0x600000
tiian@ubuntu2004:~$ flom -a ubuntu2004.brenta.org --daemon-trace-file=/tmp/flom-daemon.trc --tls-certificate=/tmp/flom_ssl/node1_cert.pem --tls-private-key=/tmp/flom_ssl/node1_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -d -1 -- true
2020-11-15 22:19:16.394238 [1626/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.394405 [1626/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.394440 [1626/0x564d50b03800] flom_tcp_connect
2020-11-15 22:19:16.394462 [1626/0x564d50b03800] flom_tcp_connect: connecting to address 'ubuntu2004.brenta.org' and port 28015
2020-11-15 22:19:16.396252 [1626/0x564d50b03800] flom_tcp_connect/getaddrinfo(): [ai_flags=2,ai_family=2,ai_socktype=1,ai_protocol=6,ai_addrlen=16,ai_canonname='ubuntu2004.brenta.org'] [ai_flags=2,ai_family=10,ai_socktype=1,ai_protocol=6,ai_addrlen=28,ai_canonname='{null}']
2020-11-15 22:19:16.396290 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.396324 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.396383 [1626/0x564d50b03800] flom_tcp_try_connect/connect(): errno=111 'Connection refused', skipping...
2020-11-15 22:19:16.396401 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=28; IPv6 address, sin6_port=28015, sin6_flowinfo=0x0, sin6_addr='fe80::5054:ff:fe5d:a9a', sin6_scope_id=0
2020-11-15 22:19:16.396439 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=28; IPv6 address, sin6_port=28015, sin6_flowinfo=0x0, sin6_addr='fe80::5054:ff:fe5d:a9a', sin6_scope_id=0
2020-11-15 22:19:16.396464 [1626/0x564d50b03800] flom_tcp_try_connect/connect(): errno=22 'Invalid argument', skipping...
2020-11-15 22:19:16.396473 [1626/0x564d50b03800] flom_tcp_connect/excp=1/ret_cod=7/errno=22
2020-11-15 22:19:16.397899 [1626/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.397927 [1626/0x564d50b03800] flom_tcp_connect
2020-11-15 22:19:16.397933 [1626/0x564d50b03800] flom_tcp_connect: connecting to address 'ubuntu2004.brenta.org' and port 28015
2020-11-15 22:19:16.399062 [1626/0x564d50b03800] flom_tcp_connect/getaddrinfo(): [ai_flags=2,ai_family=2,ai_socktype=1,ai_protocol=6,ai_addrlen=16,ai_canonname='ubuntu2004.brenta.org'] [ai_flags=2,ai_family=10,ai_socktype=1,ai_protocol=6,ai_addrlen=28,ai_canonname='{null}']
2020-11-15 22:19:16.399083 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.399102 [1626/0x564d50b03800] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.399448 [1626/0x564d50b03800] flom_tcp_connect: domain=2, sockfd=3, socket_type=1, addrlen=16
2020-11-15 22:19:16.399462 [1626/0x564d50b03800] flom_tcp_connect: addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.399474 [1626/0x564d50b03800] flom_tcp_connect/excp=2/ret_cod=0/errno=22
2020-11-15 22:19:16.399491 [1626/0x564d50b03800] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-15 22:19:16.400754 [1626/0x564d50b03800] flom_tls_init: calling SSL_load_error_strings()...
2020-11-15 22:19:16.400876 [1626/0x564d50b03800] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-15 22:19:16.400885 [1626/0x564d50b03800] flom_tls_context
2020-11-15 22:19:16.400889 [1626/0x564d50b03800] flom_tls_context: setting TLS/SSL method to TLS_client_method()
2020-11-15 22:19:16.401022 [1626/0x564d50b03800] flom_tls_context: SSL_CTX_set_verify(0x564d50b0c7e0, 1, flom_tls_callback)
2020-11-15 22:19:16.401032 [1626/0x564d50b03800] flom_tls_context/excp=2/ret_cod=0/errno=22
2020-11-15 22:19:16.401037 [1626/0x564d50b03800] flom_tls_set_cert
2020-11-15 22:19:16.401040 [1626/0x564d50b03800] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/node1_cert.pem', SSL_FILETYPE_PEM)
2020-11-15 22:19:16.401235 [1626/0x564d50b03800] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/node1_key.pem', SSL_FILETYPE_PEM)
2020-11-15 22:19:16.401305 [1626/0x564d50b03800] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-15 22:19:16.401313 [1626/0x564d50b03800] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-15 22:19:16.401400 [1626/0x564d50b03800] flom_tls_set_cert/excp=4/ret_cod=0/errno=22
2020-11-15 22:19:16.401411 [1626/0x564d50b03800] flom_tls_connect
2020-11-15 22:19:16.401417 [1626/0x564d50b03800] flom_tls_prepare
2020-11-15 22:19:16.401451 [1626/0x564d50b03800] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-15 22:19:16.403266 [1626/0x564d50b03800] flom_tls_callback: preverify_ok=1
2020-11-15 22:19:16.403278 [1626/0x564d50b03800] flom_tls_callback: ret_cod=1
2020-11-15 22:19:16.403506 [1626/0x564d50b03800] flom_tls_callback: preverify_ok=1
2020-11-15 22:19:16.403516 [1626/0x564d50b03800] flom_tls_callback: ret_cod=1
2020-11-15 22:19:16.404794 [1626/0x564d50b03800] flom_tls_connect: connection established with TLS_AES_256_GCM_SHA384 encryption
2020-11-15 22:19:16.404808 [1626/0x564d50b03800] flom_tls_cert_parse
2020-11-15 22:19:16.404822 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404829 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404833 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404837 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404840 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404845 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404849 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404855 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404859 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404862 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404865 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.404868 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.404873 [1626/0x564d50b03800] flom_tls_cert_parse: issuer fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
2020-11-15 22:19:16.405365 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405376 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405380 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405385 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405390 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405398 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405402 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405405 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405408 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405411 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405414 [1626/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.405420 [1626/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.405424 [1626/0x564d50b03800] flom_tls_cert_parse: subject fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=aa0025217cc24efb983dff5bfb361129
2020-11-15 22:19:16.405443 [1626/0x564d50b03800] flom_tls_cert_parse/excp=4/ret_cod=0/errno=0
2020-11-15 22:19:16.405447 [1626/0x564d50b03800] flom_tls_connect/excp=3/ret_cod=0/errno=0
2020-11-15 22:19:16.405895 [1626/0x564d50b03800] flom_tls_send
2020-11-15 22:19:16.405926 [1626/0x564d50b03800] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-15 22:19:16.405939 [1626/0x564d50b03800] flom_tls_recv_msg
2020-11-15 22:19:16.405943 [1626/0x564d50b03800] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-15 22:19:16.406825 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '<?xml '
2020-11-15 22:19:16.406839 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'versio'
2020-11-15 22:19:16.406844 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'n="1.0'
2020-11-15 22:19:16.406847 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '" enco'
2020-11-15 22:19:16.406853 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'ding="'
2020-11-15 22:19:16.406858 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'UTF-8"'
2020-11-15 22:19:16.406865 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 ' ?><ms'
2020-11-15 22:19:16.406869 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'g leve'
2020-11-15 22:19:16.406873 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'l="3" '
2020-11-15 22:19:16.406876 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'verb="'
2020-11-15 22:19:16.406880 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '1" ste'
2020-11-15 22:19:16.406883 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'p="16"'
2020-11-15 22:19:16.406887 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '><sess'
2020-11-15 22:19:16.406893 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'ion pe'
2020-11-15 22:19:16.406898 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'erid="'
2020-11-15 22:19:16.406905 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'aa0025'
2020-11-15 22:19:16.406909 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '217cc2'
2020-11-15 22:19:16.406913 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '4efb98'
2020-11-15 22:19:16.406916 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '3dff5b'
2020-11-15 22:19:16.406919 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'fb3611'
2020-11-15 22:19:16.406923 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '29"/><'
2020-11-15 22:19:16.406927 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=5 'answe'
2020-11-15 22:19:16.406930 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'r rc="'
2020-11-15 22:19:16.406933 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '0"/></'
2020-11-15 22:19:16.406937 [1626/0x564d50b03800] flom_tls_recv_msg: read_bytes=4 'msg>'
2020-11-15 22:19:16.406940 [1626/0x564d50b03800] flom_tls_recv_msg: received message is '<?xml version="1.0" encoding="UTF-8" ?><msg level="3" verb="1" step="16"><session peerid="aa0025217cc24efb983dff5bfb361129"/><answer rc="0"/></msg>' of 147 chars
2020-11-15 22:19:16.407225 [1626/0x564d50b03800] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-15 22:19:16.407265 [1626/0x564d50b03800] flom_tls_cert_check
2020-11-15 22:19:16.407274 [1626/0x564d50b03800] flom_tls_cert_check: peer address='192.168.123.92/28015', CN='aa0025217cc24efb983dff5bfb361129', peer unique ID='aa0025217cc24efb983dff5bfb361129'
2020-11-15 22:19:16.407286 [1626/0x564d50b03800] flom_tls_cert_check/excp=2/ret_cod=0/errno=0
2020-11-15 22:19:16.408097 [1626/0x564d50b03800] flom_tls_send
2020-11-15 22:19:16.408156 [1626/0x564d50b03800] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-15 22:19:16.408359 [1626/0x564d50b03800] flom_tcp_close
2020-11-15 22:19:16.408379 [1626/0x564d50b03800] flom_tcp_close/excp=1/ret_cod=0/errno=107

This is the trace produced by FLoM daemon that runs in node 1:

tiian@ubuntu2004:~$ cat /tmp/flom-daemon.trc
2020-11-15 22:19:16.397342 [1629/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.397388 [1629/0x564d50b03800] flom_tcp_listen
2020-11-15 22:19:16.397392 [1629/0x564d50b03800] flom_tcp_listen: binding address 'ubuntu2004.brenta.org' and port 28015
2020-11-15 22:19:16.397781 [1629/0x564d50b03800] flom_tcp_listen/getaddrinfo(): [ai_flags=1,ai_family=2,ai_socktype=1,ai_protocol=6,ai_addrlen=16,ai_canonname='{null}'] [ai_flags=1,ai_family=10,ai_socktype=1,ai_protocol=6,ai_addrlen=28,ai_canonname='{null}']
2020-11-15 22:19:16.397785 [1629/0x564d50b03800] flom_tcp_listen: ai_addr addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:19:16.397807 [1629/0x564d50b03800] flom_tcp_listen: bound!
2020-11-15 22:19:16.397818 [1629/0x564d50b03800] flom_tcp_listen/excp=3/ret_cod=0/errno=22
2020-11-15 22:19:16.397826 [1629/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.397829 [1629/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.399484 [1629/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.399496 [1629/0x564d50b03800] flom_tcp_init
2020-11-15 22:19:16.399505 [1629/0x564d50b03800] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-15 22:19:16.400754 [1629/0x564d50b03800] flom_tls_init: calling SSL_load_error_strings()...
2020-11-15 22:19:16.400876 [1629/0x564d50b03800] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-15 22:19:16.400899 [1629/0x564d50b03800] flom_tls_context
2020-11-15 22:19:16.400905 [1629/0x564d50b03800] flom_tls_context: setting TLS/SSL method to TLS_server_method()
2020-11-15 22:19:16.401022 [1629/0x564d50b03800] flom_tls_context: SSL_CTX_set_verify(0x564d50b0e090, 3, flom_tls_callback)
2020-11-15 22:19:16.401032 [1629/0x564d50b03800] flom_tls_context/excp=2/ret_cod=0/errno=22
2020-11-15 22:19:16.401037 [1629/0x564d50b03800] flom_tls_set_cert
2020-11-15 22:19:16.401041 [1629/0x564d50b03800] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/node1_cert.pem', SSL_FILETYPE_PEM)
2020-11-15 22:19:16.401235 [1629/0x564d50b03800] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/node1_key.pem', SSL_FILETYPE_PEM)
2020-11-15 22:19:16.401297 [1629/0x564d50b03800] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-15 22:19:16.401310 [1629/0x564d50b03800] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-15 22:19:16.401400 [1629/0x564d50b03800] flom_tls_set_cert/excp=4/ret_cod=0/errno=22
2020-11-15 22:19:16.401412 [1629/0x564d50b03800] flom_tls_accept
2020-11-15 22:19:16.401417 [1629/0x564d50b03800] flom_tls_prepare
2020-11-15 22:19:16.401451 [1629/0x564d50b03800] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-15 22:19:16.405247 [1629/0x564d50b03800] flom_tls_callback: preverify_ok=1
2020-11-15 22:19:16.405262 [1629/0x564d50b03800] flom_tls_callback: ret_cod=1
2020-11-15 22:19:16.405344 [1629/0x564d50b03800] flom_tls_callback: preverify_ok=1
2020-11-15 22:19:16.405352 [1629/0x564d50b03800] flom_tls_callback: ret_cod=1
2020-11-15 22:19:16.406307 [1629/0x564d50b03800] flom_tls_accepted: connection accepted with TLS_AES_256_GCM_SHA384 encryption
2020-11-15 22:19:16.406318 [1629/0x564d50b03800] flom_tls_cert_parse
2020-11-15 22:19:16.406331 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406336 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406340 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406344 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406347 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406351 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406354 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406358 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406361 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406365 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406367 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406377 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406380 [1629/0x564d50b03800] flom_tls_cert_parse: issuer fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
2020-11-15 22:19:16.406393 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406396 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406398 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406400 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406403 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406405 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406407 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406409 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406412 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406414 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406416 [1629/0x564d50b03800] flom_tls_cert_struct_fill
2020-11-15 22:19:16.406418 [1629/0x564d50b03800] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:19:16.406421 [1629/0x564d50b03800] flom_tls_cert_parse: subject fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=aa0025217cc24efb983dff5bfb361129
2020-11-15 22:19:16.406428 [1629/0x564d50b03800] flom_tls_cert_parse/excp=4/ret_cod=0/errno=0
2020-11-15 22:19:16.406431 [1629/0x564d50b03800] flom_tls_accept/excp=3/ret_cod=0/errno=0
2020-11-15 22:19:16.406436 [1629/0x564d50b03800] flom_tls_recv_msg
2020-11-15 22:19:16.406439 [1629/0x564d50b03800] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-15 22:19:16.406448 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '<?xml '
2020-11-15 22:19:16.406451 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'versio'
2020-11-15 22:19:16.406453 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'n="1.0'
2020-11-15 22:19:16.406455 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '" enco'
2020-11-15 22:19:16.406458 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'ding="'
2020-11-15 22:19:16.406460 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'UTF-8"'
2020-11-15 22:19:16.406462 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 ' ?><ms'
2020-11-15 22:19:16.406465 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'g leve'
2020-11-15 22:19:16.406467 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'l="3" '
2020-11-15 22:19:16.406469 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'verb="'
2020-11-15 22:19:16.406471 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '1" ste'
2020-11-15 22:19:16.406474 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'p="8">'
2020-11-15 22:19:16.406476 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '<sessi'
2020-11-15 22:19:16.406478 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'on pee'
2020-11-15 22:19:16.406481 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'rid="a'
2020-11-15 22:19:16.406483 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'a00252'
2020-11-15 22:19:16.406485 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '17cc24'
2020-11-15 22:19:16.406487 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'efb983'
2020-11-15 22:19:16.406490 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'dff5bf'
2020-11-15 22:19:16.406492 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'b36112'
2020-11-15 22:19:16.406494 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '9"/><r'
2020-11-15 22:19:16.406497 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'esourc'
2020-11-15 22:19:16.406499 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'e name'
2020-11-15 22:19:16.406501 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '="X1JF'
2020-11-15 22:19:16.406506 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'U09VUk'
2020-11-15 22:19:16.406508 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'NF" mo'
2020-11-15 22:19:16.406510 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'de="5"'
2020-11-15 22:19:16.406513 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 ' wait='
2020-11-15 22:19:16.406515 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '"1" cr'
2020-11-15 22:19:16.406517 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'eate="'
2020-11-15 22:19:16.406520 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '1" lif'
2020-11-15 22:19:16.406522 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 'espan='
2020-11-15 22:19:16.406524 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=6 '"0"/><'
2020-11-15 22:19:16.406526 [1629/0x564d50b03800] flom_tls_recv_msg: read_bytes=5 '/msg>'
2020-11-15 22:19:16.406529 [1629/0x564d50b03800] flom_tls_recv_msg: received message is '<?xml version="1.0" encoding="UTF-8" ?><msg level="3" verb="1" step="8"><session peerid="aa0025217cc24efb983dff5bfb361129"/><resource name="X1JFU09VUkNF" mode="5" wait="1" create="1" lifespan="0"/></msg>' of 203 chars
2020-11-15 22:19:16.406531 [1629/0x564d50b03800] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-15 22:19:16.406570 [1629/0x564d50b03800] flom_tls_cert_check
2020-11-15 22:19:16.406573 [1629/0x564d50b03800] flom_tls_cert_check: peer address='192.168.123.92/52934', CN='aa0025217cc24efb983dff5bfb361129', peer unique ID='aa0025217cc24efb983dff5bfb361129'
2020-11-15 22:19:16.406579 [1629/0x564d50b03800] flom_tls_cert_check/excp=2/ret_cod=0/errno=0
2020-11-15 22:19:16.406720 [1629/0x564d50ae8240] flom_tcp_init
2020-11-15 22:19:16.406734 [1629/0x564d50ae8240] flom_tcp_init
2020-11-15 22:19:16.406780 [1629/0x564d50ae8240] flom_tls_send
2020-11-15 22:19:16.406813 [1629/0x564d50ae8240] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-15 22:19:16.408173 [1629/0x564d50ae8240] flom_tls_recv_msg
2020-11-15 22:19:16.408185 [1629/0x564d50ae8240] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-15 22:19:16.408201 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 '<?xml '
2020-11-15 22:19:16.408208 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'versio'
2020-11-15 22:19:16.408212 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'n="1.0'
2020-11-15 22:19:16.408217 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 '" enco'
2020-11-15 22:19:16.408221 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'ding="'
2020-11-15 22:19:16.408225 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'UTF-8"'
2020-11-15 22:19:16.408229 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 ' ?><ms'
2020-11-15 22:19:16.408231 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'g leve'
2020-11-15 22:19:16.408234 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'l="3" '
2020-11-15 22:19:16.408236 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'verb="'
2020-11-15 22:19:16.408239 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 '2" ste'
2020-11-15 22:19:16.408242 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'p="8">'
2020-11-15 22:19:16.408244 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 '<resou'
2020-11-15 22:19:16.408247 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'rce na'
2020-11-15 22:19:16.408249 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'me="X1'
2020-11-15 22:19:16.408252 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'JFU09V'
2020-11-15 22:19:16.408255 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'UkNF" '
2020-11-15 22:19:16.408257 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'rollba'
2020-11-15 22:19:16.408260 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 'ck="0"'
2020-11-15 22:19:16.408262 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=6 ' /></m'
2020-11-15 22:19:16.408265 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=3 'sg>'
2020-11-15 22:19:16.408273 [1629/0x564d50ae8240] flom_tls_recv_msg: received message is '<?xml version="1.0" encoding="UTF-8" ?><msg level="3" verb="2" step="8"><resource name="X1JFU09VUkNF" rollback="0" /></msg>' of 123 chars
2020-11-15 22:19:16.408276 [1629/0x564d50ae8240] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-15 22:19:16.408301 [1629/0x564d50ae8240] flom_tls_recv_msg
2020-11-15 22:19:16.408308 [1629/0x564d50ae8240] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-15 22:19:16.408313 [1629/0x564d50ae8240] flom_tls_recv_msg: read_bytes=0 ''
2020-11-15 22:19:16.408318 [1629/0x564d50ae8240] flom_tls_recv_msg/SSL_read: SSL error=5 (SSL_ERROR_SYSCALL)
2020-11-15 22:19:16.408323 [1629/0x564d50ae8240] flom_tls_recv_msg/excp=1/ret_cod=-409/errno=0
2020-11-15 22:19:16.408327 [1629/0x564d50ae8240] flom_tcp_close
2020-11-15 22:19:16.408357 [1629/0x564d50ae8240] flom_tcp_close/excp=1/ret_cod=0/errno=0

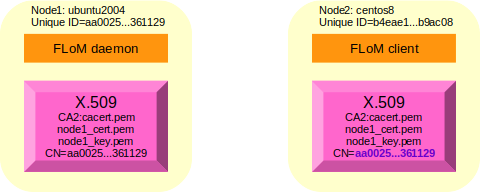

This is the command to start a FLoM client using TLS inside node2:

[tiian@centos8 ~]$ export FLOM_TRACE_MASK=0x600000
[tiian@centos8 ~]$ echo $FLOM_TRACE_MASK
0x600000
[tiian@centos8 ~]$ flom -a ubuntu2004.brenta.org --tls-certificate=/tmp/flom_ssl/node2_cert.pem --tls-private-key=/tmp/flom_ssl/node2_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -- echo 'Hello world!'
2020-11-15 22:22:24.847416 [1842/0x1caec00] flom_tcp_init
2020-11-15 22:22:24.847529 [1842/0x1caec00] flom_tcp_init
2020-11-15 22:22:24.847535 [1842/0x1caec00] flom_tcp_connect
2020-11-15 22:22:24.847539 [1842/0x1caec00] flom_tcp_connect: connecting to address 'ubuntu2004.brenta.org' and port 28015
2020-11-15 22:22:24.849770 [1842/0x1caec00] flom_tcp_connect/getaddrinfo(): [ai_flags=2,ai_family=2,ai_socktype=1,ai_protocol=6,ai_addrlen=16,ai_canonname='ubuntu2004.brenta.org'] [ai_flags=2,ai_family=10,ai_socktype=1,ai_protocol=6,ai_addrlen=28,ai_canonname='{null}']
2020-11-15 22:22:24.849801 [1842/0x1caec00] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:22:24.850128 [1842/0x1caec00] flom_tcp_try_connect: sa addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:22:24.850727 [1842/0x1caec00] flom_tcp_connect: domain=2, sockfd=3, socket_type=1, addrlen=16
2020-11-15 22:22:24.850737 [1842/0x1caec00] flom_tcp_connect: addrlen=16; IPv4 address, sin_port=28015, sin_addr='192.168.123.92'
2020-11-15 22:22:24.850750 [1842/0x1caec00] flom_tcp_connect/excp=2/ret_cod=0/errno=22
2020-11-15 22:22:24.850758 [1842/0x1caec00] flom_tls_init: calling OPENSSL_init_ssl()...
2020-11-15 22:22:24.851758 [1842/0x1caec00] flom_tls_init: calling SSL_load_error_strings()...
2020-11-15 22:22:24.851864 [1842/0x1caec00] flom_tls_init: calling OpenSSL_add_all_algorithms()...
2020-11-15 22:22:24.851881 [1842/0x1caec00] flom_tls_context
2020-11-15 22:22:24.851884 [1842/0x1caec00] flom_tls_context: setting TLS/SSL method to TLS_client_method()
2020-11-15 22:22:24.852180 [1842/0x1caec00] flom_tls_context: SSL_CTX_set_verify(0x1cb7d90, 1, flom_tls_callback)
2020-11-15 22:22:24.852191 [1842/0x1caec00] flom_tls_context/excp=2/ret_cod=0/errno=22
2020-11-15 22:22:24.852195 [1842/0x1caec00] flom_tls_set_cert
2020-11-15 22:22:24.852197 [1842/0x1caec00] flom_tls_set_cert: SSL_CTX_use_certificate_file(obj->ctx, '/tmp/flom_ssl/node2_cert.pem', SSL_FILETYPE_PEM)
2020-11-15 22:22:24.852373 [1842/0x1caec00] flom_tls_set_cert: SSL_CTX_use_PrivateKey_file(obj->ctx, '/tmp/flom_ssl/node2_key.pem', SSL_FILETYPE_PEM)
2020-11-15 22:22:24.852435 [1842/0x1caec00] flom_tls_set_cert: SSL_CTX_check_private_key(obj->ctx)
2020-11-15 22:22:24.852443 [1842/0x1caec00] flom_tls_set_cert: SSL_CTX_load_verify_locations(obj->ctx, '/tmp/flom_ssl/cacert.pem', NULL)
2020-11-15 22:22:24.852537 [1842/0x1caec00] flom_tls_set_cert/excp=4/ret_cod=0/errno=22
2020-11-15 22:22:24.852545 [1842/0x1caec00] flom_tls_connect
2020-11-15 22:22:24.852548 [1842/0x1caec00] flom_tls_prepare
2020-11-15 22:22:24.852568 [1842/0x1caec00] flom_tls_prepare/excp=3/ret_cod=0/errno=22
2020-11-15 22:22:24.854803 [1842/0x1caec00] flom_tls_callback: preverify_ok=1
2020-11-15 22:22:24.854814 [1842/0x1caec00] flom_tls_callback: ret_cod=1
2020-11-15 22:22:24.854885 [1842/0x1caec00] flom_tls_callback: preverify_ok=1
2020-11-15 22:22:24.854890 [1842/0x1caec00] flom_tls_callback: ret_cod=1
2020-11-15 22:22:24.856202 [1842/0x1caec00] flom_tls_connect: connection established with TLS_AES_256_GCM_SHA384 encryption
2020-11-15 22:22:24.856214 [1842/0x1caec00] flom_tls_cert_parse
2020-11-15 22:22:24.856223 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856226 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856228 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856230 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856233 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856235 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856237 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856241 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856243 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856245 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856250 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856253 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856257 [1842/0x1caec00] flom_tls_cert_parse: issuer fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
2020-11-15 22:22:24.856311 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856316 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856318 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856320 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856322 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856325 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856327 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856329 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856331 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856333 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856336 [1842/0x1caec00] flom_tls_cert_struct_fill
2020-11-15 22:22:24.856348 [1842/0x1caec00] flom_tls_cert_struct_fill/excp=7/ret_cod=0/errno=0
2020-11-15 22:22:24.856350 [1842/0x1caec00] flom_tls_cert_parse: subject fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=aa0025217cc24efb983dff5bfb361129
2020-11-15 22:22:24.856358 [1842/0x1caec00] flom_tls_cert_parse/excp=4/ret_cod=0/errno=0
2020-11-15 22:22:24.856361 [1842/0x1caec00] flom_tls_connect/excp=3/ret_cod=0/errno=0
2020-11-15 22:22:24.856564 [1842/0x1caec00] flom_tls_send
2020-11-15 22:22:24.856604 [1842/0x1caec00] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-15 22:22:24.856615 [1842/0x1caec00] flom_tls_recv_msg
2020-11-15 22:22:24.856619 [1842/0x1caec00] flom_tls_recv_msg: closing_tag='</msg>', closing_tag_len=6, closing_tag_last='>'
2020-11-15 22:22:24.857603 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '<?xml '
2020-11-15 22:22:24.857612 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'versio'
2020-11-15 22:22:24.857614 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'n="1.0'
2020-11-15 22:22:24.857617 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '" enco'
2020-11-15 22:22:24.857619 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'ding="'
2020-11-15 22:22:24.857621 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'UTF-8"'
2020-11-15 22:22:24.857624 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 ' ?><ms'
2020-11-15 22:22:24.857627 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'g leve'
2020-11-15 22:22:24.857629 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'l="3" '
2020-11-15 22:22:24.857631 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'verb="'
2020-11-15 22:22:24.857633 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '1" ste'
2020-11-15 22:22:24.857636 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'p="16"'
2020-11-15 22:22:24.857638 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '><sess'
2020-11-15 22:22:24.857641 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'ion pe'
2020-11-15 22:22:24.857643 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'erid="'
2020-11-15 22:22:24.857645 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'aa0025'
2020-11-15 22:22:24.857647 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '217cc2'
2020-11-15 22:22:24.857650 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '4efb98'
2020-11-15 22:22:24.857652 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '3dff5b'
2020-11-15 22:22:24.857654 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'fb3611'
2020-11-15 22:22:24.857657 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '29"/><'
2020-11-15 22:22:24.857659 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=5 'answe'
2020-11-15 22:22:24.857661 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 'r rc="'
2020-11-15 22:22:24.857664 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=6 '0"/></'
2020-11-15 22:22:24.857666 [1842/0x1caec00] flom_tls_recv_msg: read_bytes=4 'msg>'
2020-11-15 22:22:24.857668 [1842/0x1caec00] flom_tls_recv_msg: received message is '<?xml version="1.0" encoding="UTF-8" ?><msg level="3" verb="1" step="16"><session peerid="aa0025217cc24efb983dff5bfb361129"/><answer rc="0"/></msg>' of 147 chars
2020-11-15 22:22:24.857672 [1842/0x1caec00] flom_tls_recv_msg/excp=3/ret_cod=0/errno=0
2020-11-15 22:22:24.857715 [1842/0x1caec00] flom_tls_cert_check
2020-11-15 22:22:24.857719 [1842/0x1caec00] flom_tls_cert_check: peer address='192.168.123.92/28015', CN='aa0025217cc24efb983dff5bfb361129', peer unique ID='aa0025217cc24efb983dff5bfb361129'
2020-11-15 22:22:24.857726 [1842/0x1caec00] flom_tls_cert_check/excp=2/ret_cod=0/errno=0
Hello world!
2020-11-15 22:22:24.859397 [1842/0x1caec00] flom_tls_send
2020-11-15 22:22:24.859467 [1842/0x1caec00] flom_tls_send/excp=2/ret_cod=0/errno=0
2020-11-15 22:22:24.860010 [1842/0x1caec00] flom_tcp_close
2020-11-15 22:22:24.860030 [1842/0x1caec00] flom_tcp_close/excp=1/ret_cod=0/errno=107

Remove trace mask and the old daemon, then restart the daemon on node1:

tiian@ubuntu2004:~$ pkill flom
tiian@ubuntu2004:~$ pgrep flom
tiian@ubuntu2004:~$ unset FLOM_TRACE_MASK
tiian@ubuntu2004:~$ flom -a ubuntu2004.brenta.org --daemon-trace-file=/tmp/flom-daemon.trc --tls-certificate=/tmp/flom_ssl/node1_cert.pem --tls-private-key=/tmp/flom_ssl/node1_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -d -1 -- true
tiian@ubuntu2004:~$ pgrep flom
1649

Remove trace mask, then restart the client on node2:

[tiian@centos8 ~]$ unset FLOM_TRACE_MASK
[tiian@centos8 ~]$ flom -a ubuntu2004.brenta.org --tls-certificate=/tmp/flom_ssl/node2_cert.pem --tls-private-key=/tmp/flom_ssl/node2_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -- echo 'Hello world!'
Hello world!

Configuration hints

A more convenient way to setup all the TLS parameters is to use a FLoM [Configuration] file: these are the keys you have to customize:

[TLS]
# Name of the file that contains the X.509 certificate assigned to this peer
# (Uncomment below row if necessary)
#TlsCertificate=cert.pem
# Name of the file that contains the private key of this peer
# (Uncomment below row if necessary)
#TlsPrivateKey=priv_key.pem
# Name of the file that contains the X.509 certificate of the certification
# authority used to sign the certificate of this peer
# (Uncomment below row if necessary)
#TlsCaCertificate=ca_cert.pem
# Check if the CommonName (CN) of the peer certificate matches the peer unique
# identifier; valid values are "yes" and "no" (case insensitive)
# (Uncomment below row if necessary)
#TlsCheckPeerId=yes

System message logging

Both client and server writes logging messages on the system log.

On the server side (node1):

Nov 15 22:24:21 ubuntu2004 flom[1649]: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
Nov 15 22:24:21 ubuntu2004 flom[1649]: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=b4eae148592d4d128df8f76987b9ac08
Nov 15 22:24:21 ubuntu2004 flom[1649]: FLM015I a connecting peer sent id 'b4eae148592d4d128df8f76987b9ac08' for verb 1 and step 8
Nov 15 22:24:21 ubuntu2004 flom[1649]: FLM014I peer '192.168.123.227/34958' with unique ID 'b4eae148592d4d128df8f76987b9ac08' was authenticated using CN field 'b4eae148592d4d128df8f76987b9ac08' inside the presented X.509 certificate

On the client side (node2), these are the corresponding messages:

Nov 15 22:24:21 centos8 flom[1848]: FLM011I X.509 CA certificate fields are C=IT
/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null
}/CN=CA for FLoM Mutual Authentication
Nov 15 22:24:21 centos8 flom[1848]: FLM012I X.509 peer certificate fields are C=
IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={nu
ll}/CN=aa0025217cc24efb983dff5bfb361129
Nov 15 22:24:21 centos8 flom[1848]: FLM016I the serving peer sent id 'aa0025217c
c24efb983dff5bfb361129' for verb 1 and step 16
Nov 15 22:24:21 centos8 flom[1848]: FLM014I peer '192.168.123.92/28015' with uni
que ID 'aa0025217cc24efb983dff5bfb361129' was authenticated using CN field 'aa00
25217cc24efb983dff5bfb361129' inside the presented X.509 certificate

FLoM peer unique ID

From the above logs:

• node2 (client) sends ID b4eae148592d4d128df8f76987b9ac08 to node1 (server)
• node1 (send) sends back ID aa0025217cc24efb983dff5bfb361129 to node2 (client)

both nodes sent their own identity, and identity is verified due to command line option –tls-check-peer-id=yes.

Using a wrong X.509 certificates (server side)

To see what happens when a peer uses a wrong certificate, make a local copy of node2’s certificate in node1:

tiian@ubuntu2004:~/flom_ssl/CA2$ cp node2_cert.pem node2_key.pem /tmp/flom_ssl/
tiian@ubuntu2004:~/flom_ssl/CA2$ ls -la /tmp/flom_ssl/
total 36
drwxrwxr-x  2 tiian tiian 4096 Nov 15 22:37 .
drwxrwxrwt 12 root  root  4096 Nov 15 22:15 ..
-rw-rw-r--  1 tiian tiian 1712 Nov 15 22:15 cacert.pem
-rw-rw-r--  1 tiian tiian 4706 Nov 15 22:15 node1_cert.pem
-rw-------  1 tiian tiian 1704 Nov 15 22:15 node1_key.pem
-rw-rw-r--  1 tiian tiian 4706 Nov 15 22:37 node2_cert.pem
-rw-------  1 tiian tiian 1704 Nov 15 22:37 node2_key.pem

Restart the server on node1 using the wrong certicate:

tiian@ubuntu2004:~$ pkill flom
tiian@ubuntu2004:~$ pgrep flom
tiian@ubuntu2004:~$ flom -a ubuntu2004.brenta.org --daemon-trace-file=/tmp/flom-daemon.trc --tls-certificate=/tmp/flom_ssl/node2_cert.pem --tls-private-key=/tmp/flom_ssl/node2_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -d -1 -- true
flom_client_lock: ret_cod=-409 (ERROR: 'OpenSSL SSL_read' function returned an error)
tiian@ubuntu2004:~$ pgrep flom
1722

Check the syslog content:

Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM001I this process is activating a netw
ork FLoM daemon listening TCP/IP socket ubuntu2004.brenta.org/28015
Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM003N FLoM daemon is ready to serve inc
oming requests
Nov 15 22:38:24 ubuntu2004 flom: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
Nov 15 22:38:24 ubuntu2004 flom: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=b4eae148592d4d128df8f76987b9ac08
Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=b4eae148592d4d128df8f76987b9ac08
Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM015I a connecting peer sent id 'aa0025217cc24efb983dff5bfb361129' for verb 1 and step 8
Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM013E peer '192.168.123.92/52944' sent unique ID 'aa0025217cc24efb983dff5bfb361129' that does not match che CN field 'b4eae148592d4d128df8f76987b9ac08' inside the presented X.509 certificate

The result is a running server with process ID 1722, but no client would accept its services because the certificate does not match the node unique ID:

Nov 15 22:38:24 ubuntu2004 flom[1722]: FLM013E peer '192.168.123.92/52944' sent unique ID 'aa0025217cc24efb983dff5bfb361129' that does not match che CN field 'b4eae148592d4d128df8f76987b9ac08' inside the presented X.509 certificate

Hint

A FLoM daemon is activated inside the process to create a dummy lock:

tiian@ubuntu2004:~$ flom -a ubuntu2004.brenta.org ... -d -1 -- true

means:

• create a daemon process -d -1
• for address ubuntu2004.brenta.org
• lock the default resource and execute the dummy command true

This type of daemon activation is useful to check if the daemon can be reached or not.

Using a wrong X.509 certificates (client side)

Copy the certificate of node1 on node2:

tiian@ubuntu2004:~/flom_ssl/CA2$ scp node1_cert.pem node1_key.pem tiian@centos8.brenta.org:/tmp/flom_ssl/
tiian@centos8.brenta.org's password:
node1_cert.pem                                100% 4706     4.3MB/s   00:00
node1_key.pem                                 100% 1704     2.3MB/s   00:00

Restart the server on node1, with the right certificate:

tiian@ubuntu2004:~$ pkill flom
tiian@ubuntu2004:~$ pgrep flom
tiian@ubuntu2004:~$ flom -a ubuntu2004.brenta.org --daemon-trace-file=/tmp/flom-daemon.trc --tls-certificate=/tmp/flom_ssl/node1_cert.pem --tls-private-key=/tmp/flom_ssl/node1_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -d -1 -- true
tiian@ubuntu2004:~$ pgrep flom
1862

Activate the client on node2, with the wrong certificate:

[tiian@centos8 ~]$ flom -a ubuntu2004.brenta.org --tls-certificate=/tmp/flom_ssl/node1_cert.pem --tls-private-key=/tmp/flom_ssl/node1_key.pem --tls-ca-certificate=/tmp/flom_ssl/cacert.pem --tls-check-peer-id=yes -- echo 'Hello world!'
flom_client_lock: ret_cod=-409 (ERROR: 'OpenSSL SSL_read' function returned an error)

This is the content of the syslog of node1 (server):

Nov 15 22:45:26 ubuntu2004 flom[1862]: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
Nov 15 22:45:26 ubuntu2004 flom[1862]: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=aa0025217cc24efb983dff5bfb361129
Nov 15 22:45:26 ubuntu2004 flom[1862]: FLM015I a connecting peer sent id 'b4eae148592d4d128df8f76987b9ac08' for verb 1 and step 8
Nov 15 22:45:26 ubuntu2004 flom[1862]: FLM013E peer '192.168.123.227/34960' sent unique ID 'b4eae148592d4d128df8f76987b9ac08' that does not match che CN field 'aa0025217cc24efb983dff5bfb361129' inside the presented X.509 certificate

This message is the symptom of a client side certificate issue:

Nov 15 22:45:26 ubuntu2004 flom[1862]: FLM013E peer '192.168.123.227/34960' sent unique ID 'b4eae148592d4d128df8f76987b9ac08' that does not match che CN field 'aa0025217cc24efb983dff5bfb361129' inside the presented X.509 certificate

This is the content of the syslog of node2 (client):

Nov 15 22:45:26 centos8 flom[1973]: FLM011I X.509 CA certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=CA for FLoM Mutual Authentication
Nov 15 22:45:26 centos8 flom[1973]: FLM012I X.509 peer certificate fields are C=IT/ST=Treviso/L=Mogliano Veneto/O=www.tiian.org/OU=FLoM Project/emailAddress={null}/CN=aa0025217cc24efb983dff5bfb361129

Conclusions

With mutual authentication you can set a network of FLoM nodes that:

• communicate each other using the encryption algorithms provided by the TLS layer
• authenticate each other using the CN (Common Name) field of the X.509 certificates

Mutual Authentication configuration requires, for every node:

• executing the command flom –unique-id to retrieve the unique ID associated by FLoM to every node
• generating a dedicated X.509 certificate that contains the unique ID
